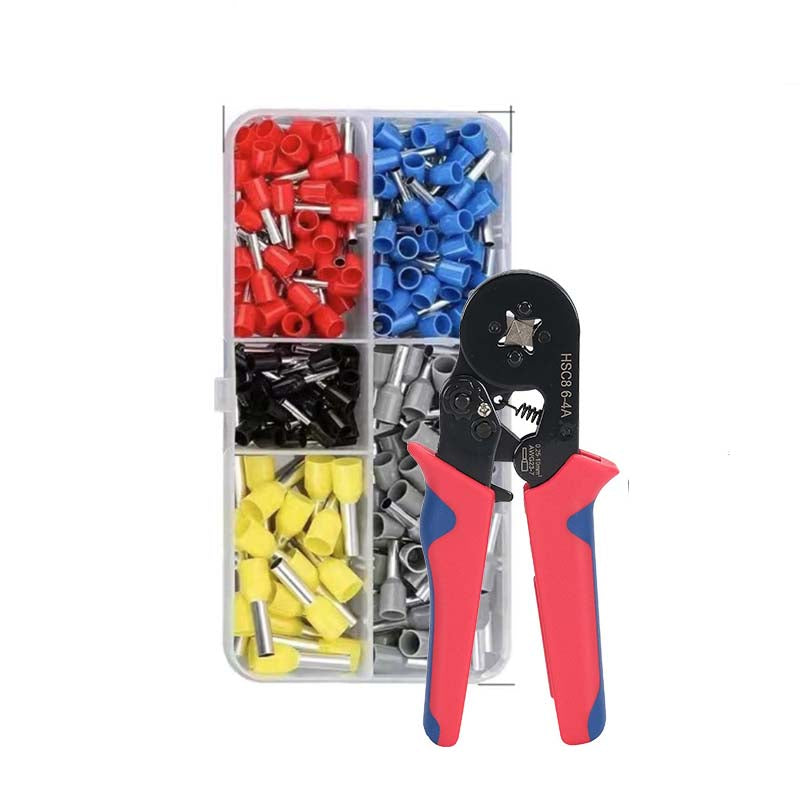

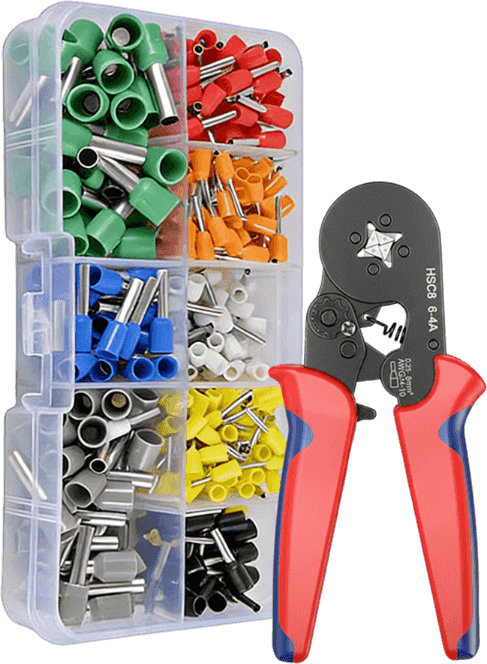

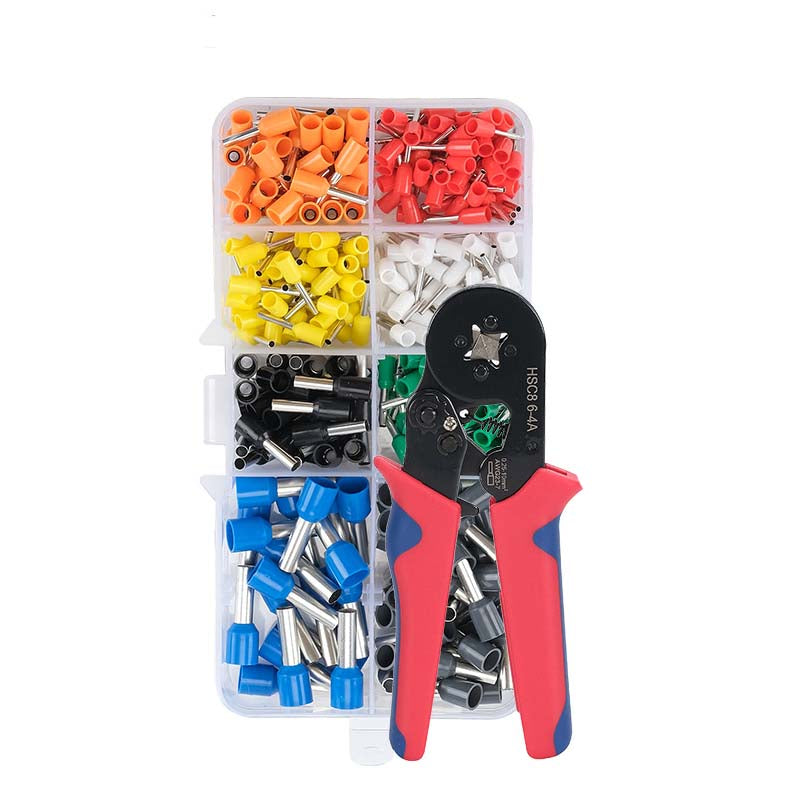

End sleeves crimping tool set with cable lugs | Kalsten

Connecting cables, but the connection doesn't hold – and the work has to start over again.

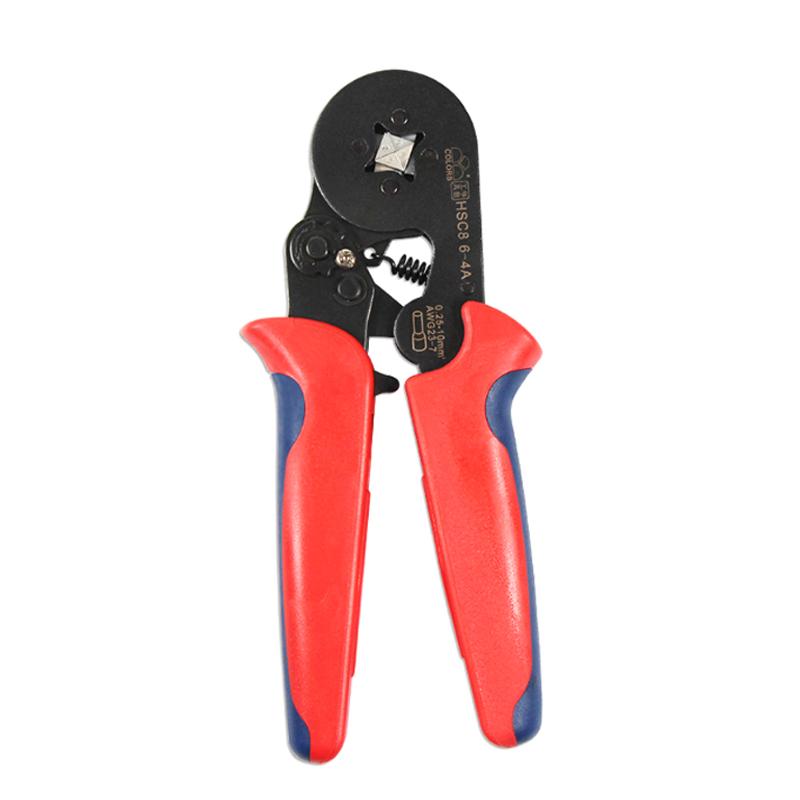

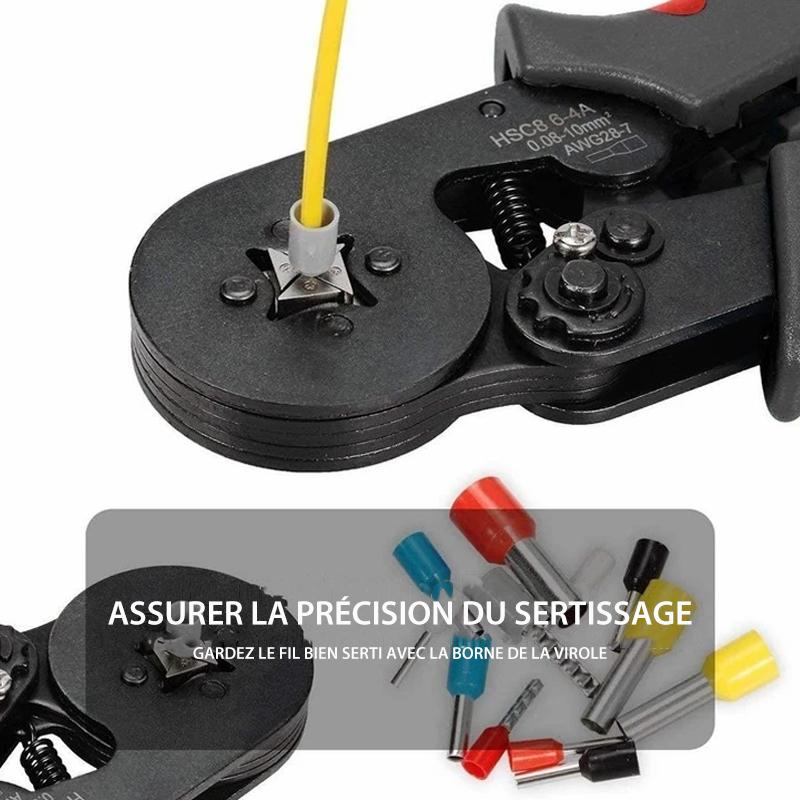

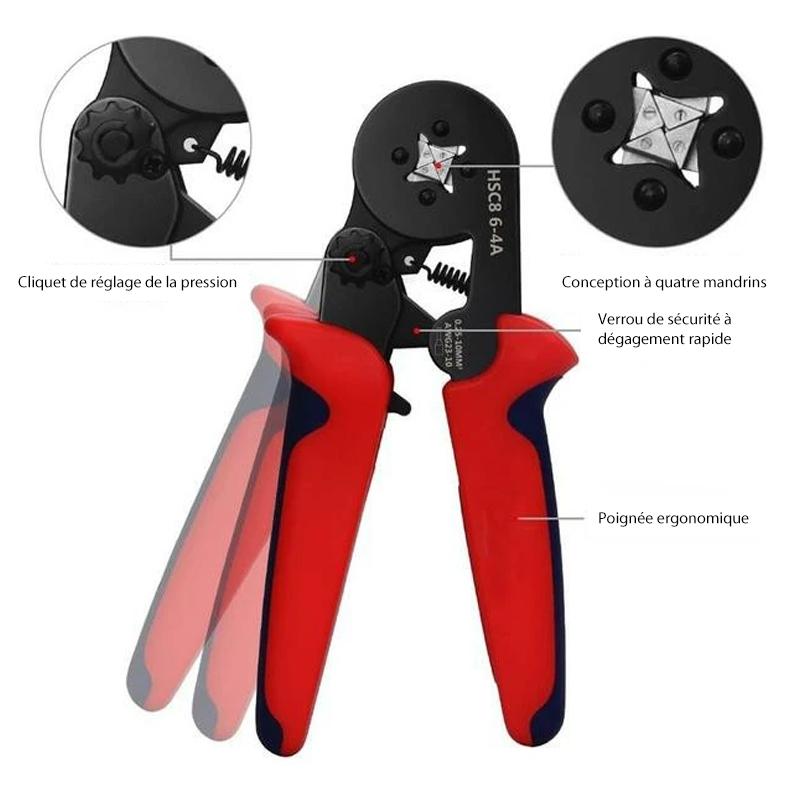

Anyone who regularly crimps cable ends knows the problem: too much force, uneven pressure, and connections that later have contact issues. The terminal lug-crimping pliers-set from Kalsten solves this with a self-adjusting ratchet mechanism that automatically sets the exact right crimping pressure – the tool only disengages when the connection is secure. The result is uniform, reliable crimp connections – faster and with less effort than conventional pliers.

Advantages

• No more faulty connections: The factory-calibrated crimping pressure ensures that every connection achieves the same high quality standard – manual verification of each crimping is unnecessary.
• No strain on your hands during repeated work: Thanks to the ratchet lever translation, high crimping force is achieved with low grip pressure – even after many repetitions, the effort remains consistently low.
• No guessing about the right attachment: The crimper automatically adjusts to the cross-section of 0.25 to 10 mm² – there is no need to manually change or search for the right jaw.

Specifications

• Material: Nylon and copper alloy
• Crimp range: 0.25 – 10 mm²
• AWG range: 23 – 7

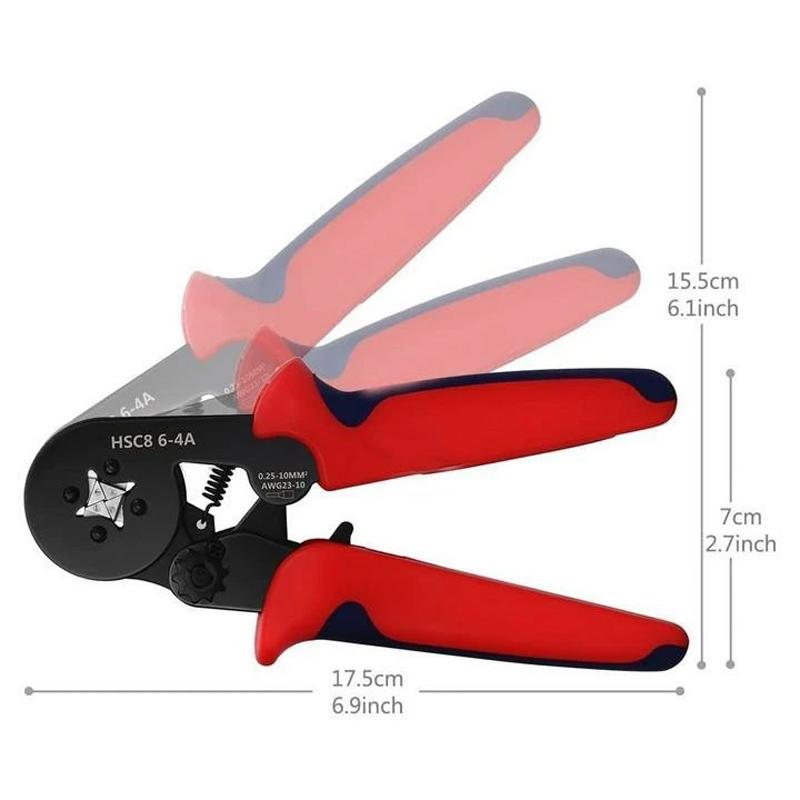

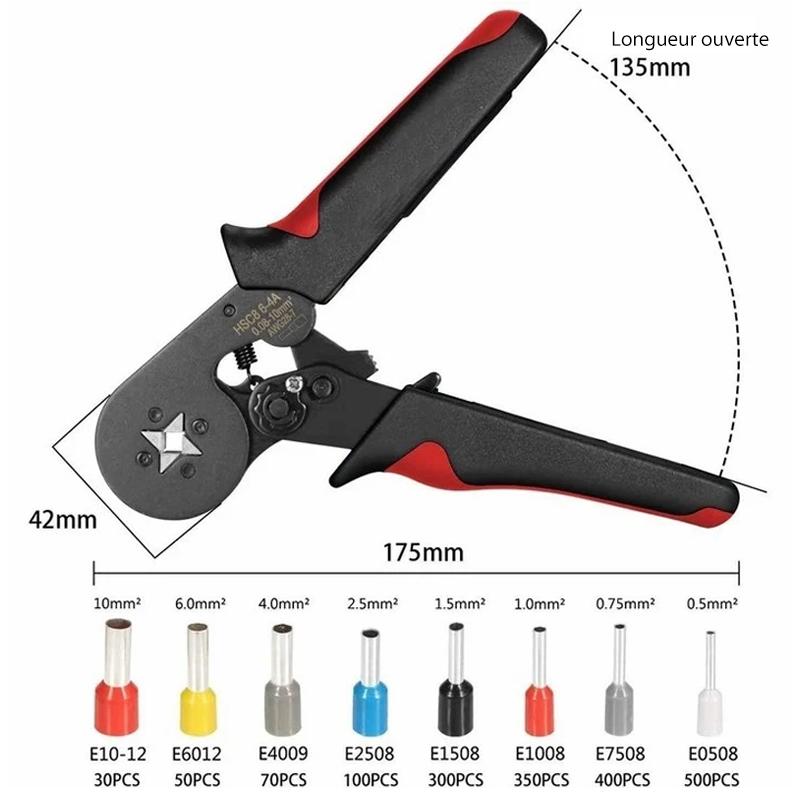

• Overall length: 175 mm
• Handle: ABS plastic

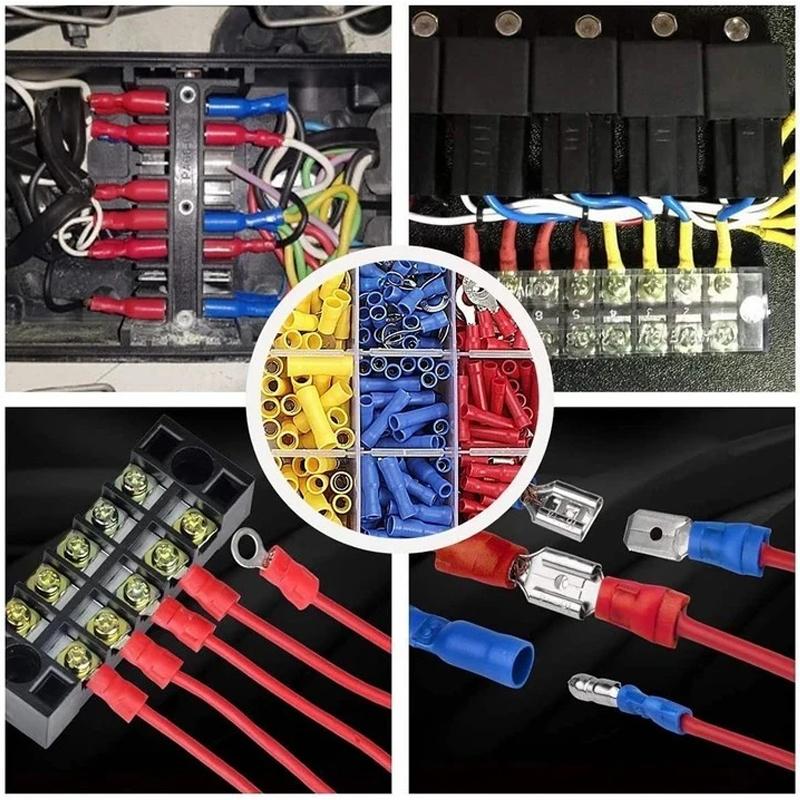

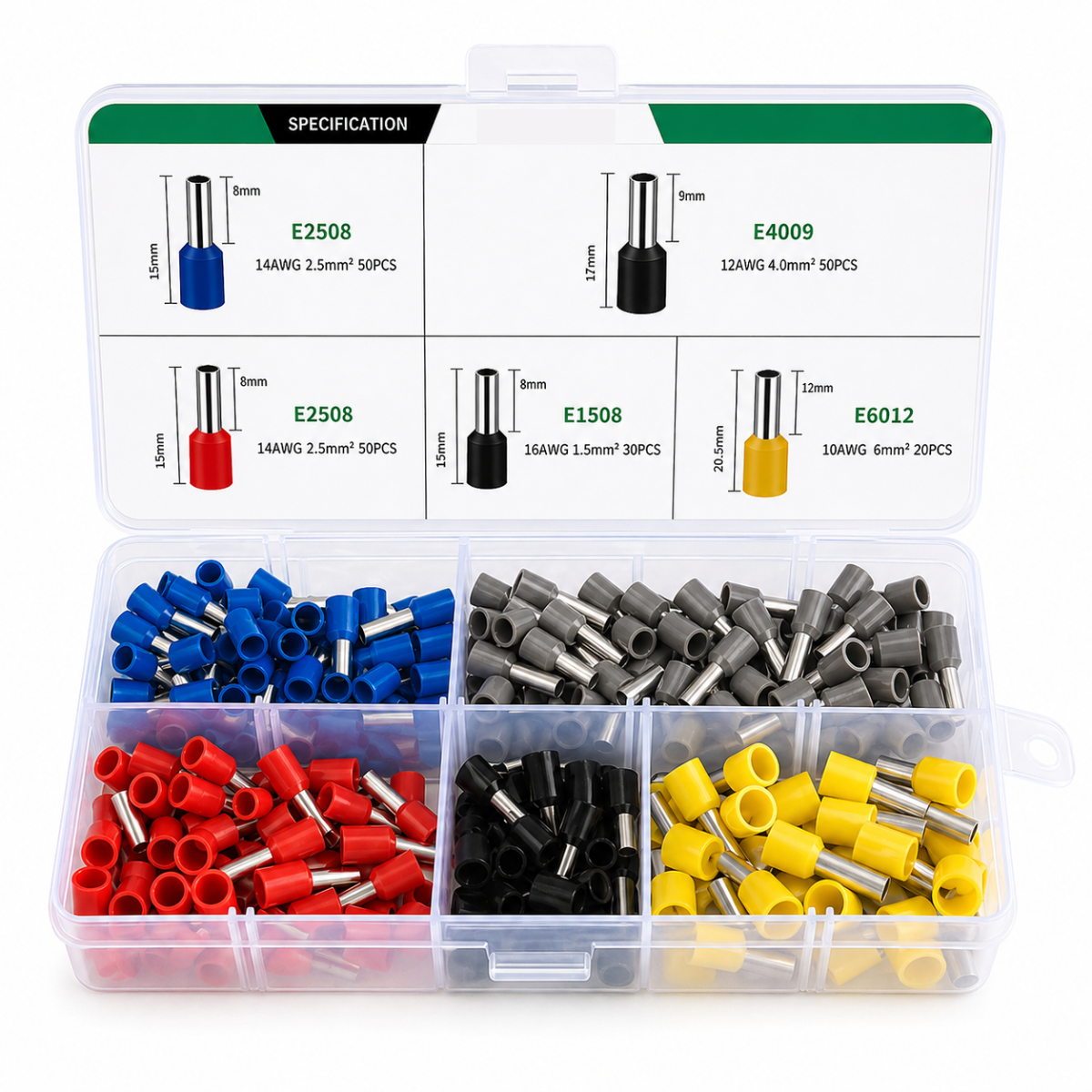

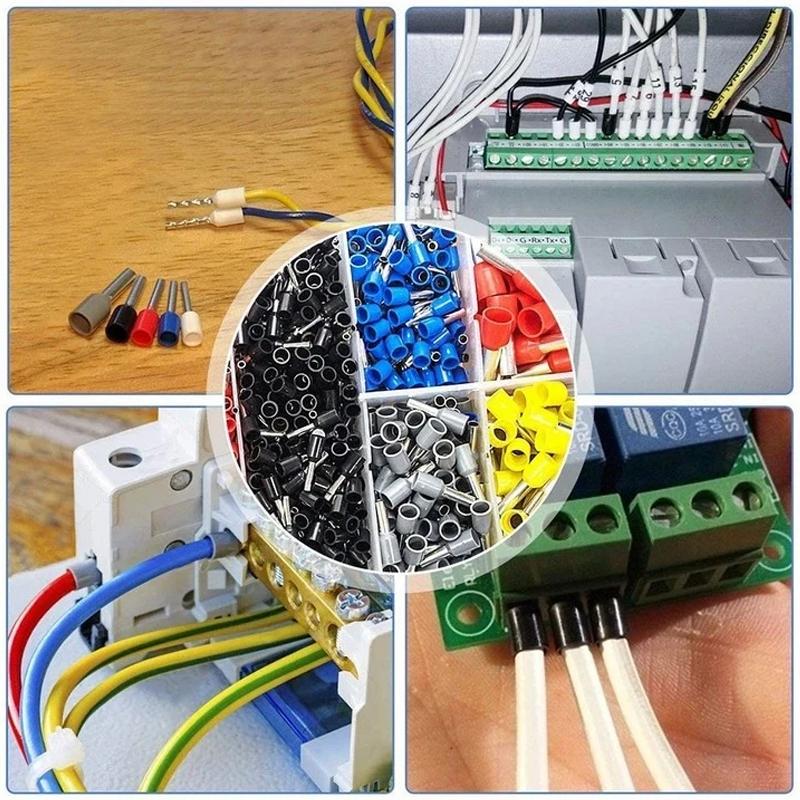

• Application area: Cable ends (insulated and uninsulated terminal lugs)

Application

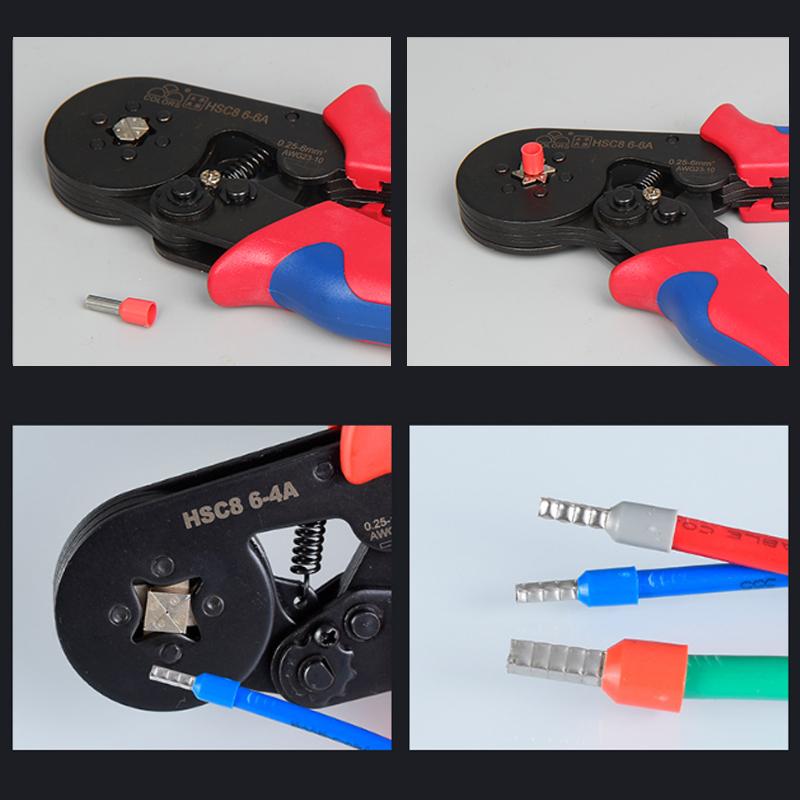

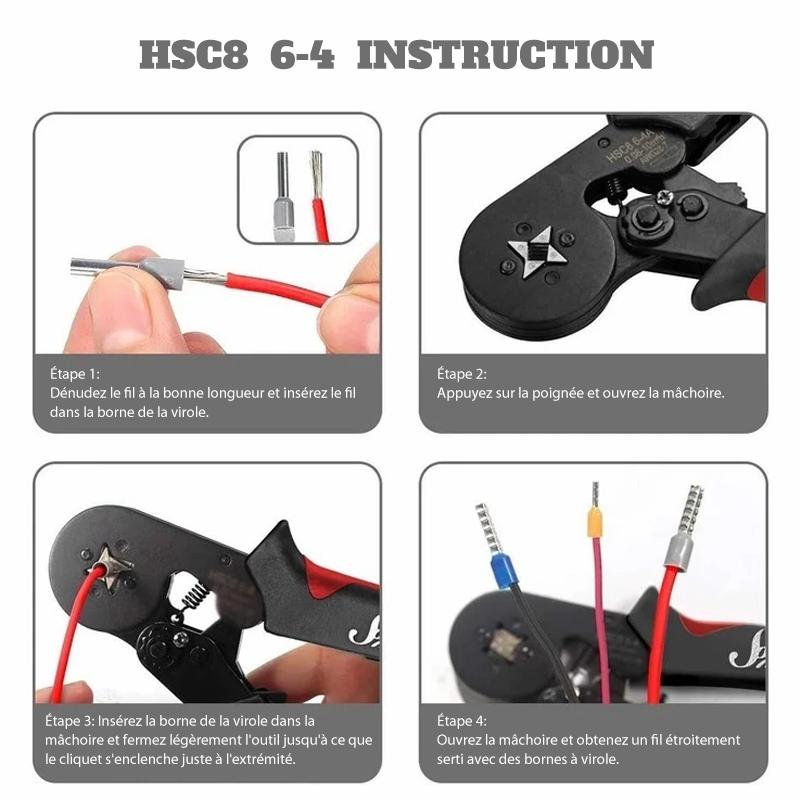

1. Strip: Use the provided wire stripper to strip the cable end to the appropriate length.

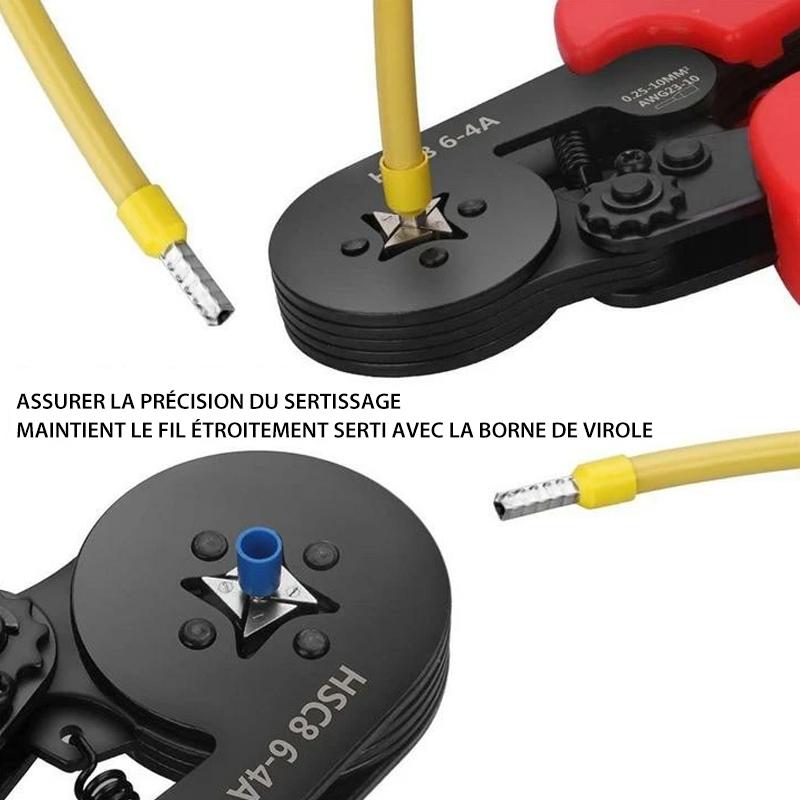

2. Insert: Slide the terminal lug onto the stripped cable end and place it in the crimping pliers – the tool automatically adjusts the jaw spacing.

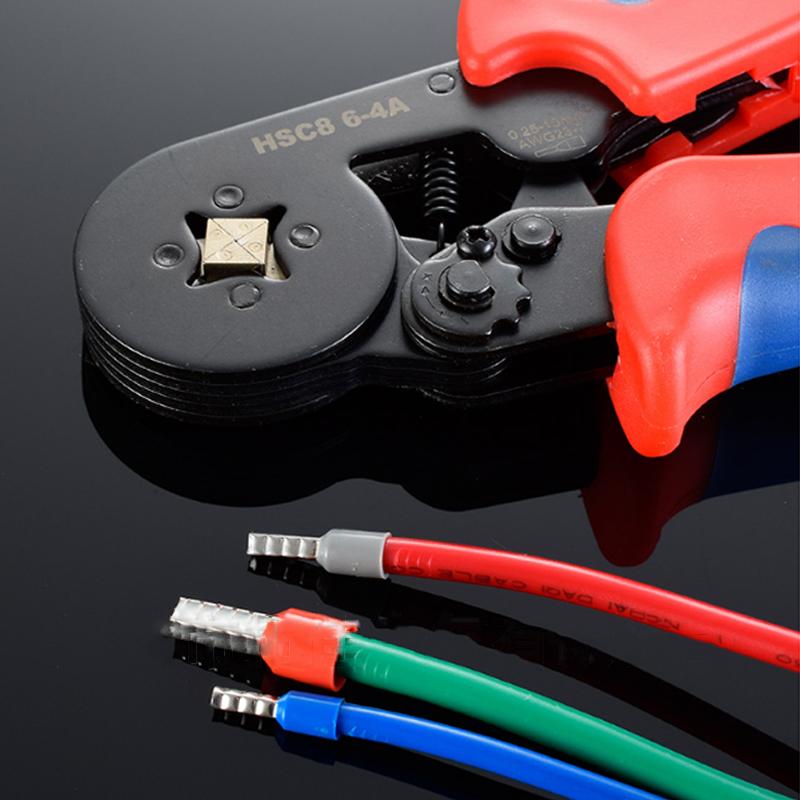

3. Crimp: Squeeze the handles until the ratchet mechanism releases and the connection is freed – the crimping is complete.

Pro Tip: For very thin cables (under 0.5 mm²), slightly pre-fold the lug before inserting it – this makes it sit more securely in the jaws and prevents it from slipping out during crimping.
